Testing Server Ports 8080 and 9091
From your client start with ping. You have to be on the same VPN or subnet or route. If you can't ping the AInode then the CaraOne client is not going to connect. Then from a web browser, test HTTP://x.x.x.x:8080 and HTTP://x.x.x.x:9091. You should see the below for each port. Please note they look like errors but they are normal since we are not exposing http over these ports but other services the CaraOne client is using. If you have "no connection" and the browser can not connect to anything then there is a communication problem. Troubleshoot further by making sure services are running, config files are set correctly, and no ports are blocked by a firewall. For port 9091, check the AInodes "REST API" IP address and make sure it is set to the correct NIC / IP Address intended as below

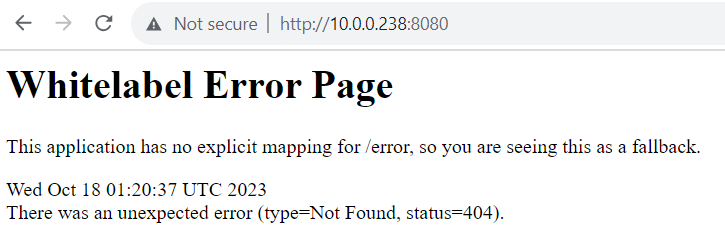

8080 Intended Test Result

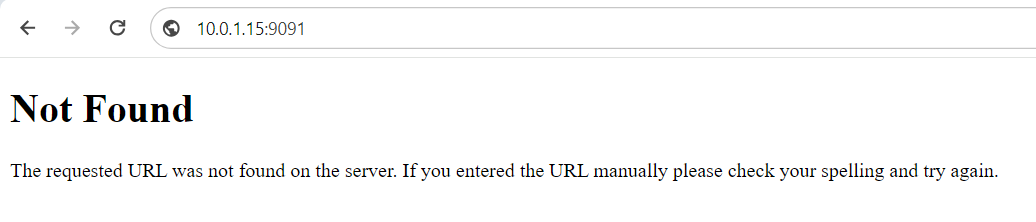

9091 Intended Test Result
Windows Firewall Information

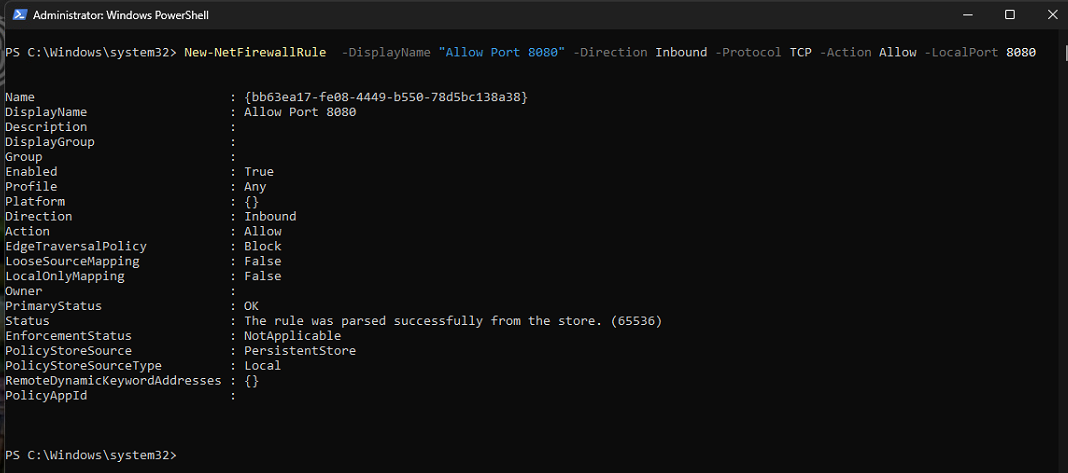

# Open port 8080 for TCP
New-NetFirewallRule -DisplayName "Allow Port 8080" -Direction Inbound -Protocol TCP -Action Allow -LocalPort 8080
# Open port 9091 for TCP
New-NetFirewallRule -DisplayName "Allow Port 9091" -Direction Inbound -Protocol TCP -Action Allow -LocalPort 9091
