Disk Failure and Rebuild

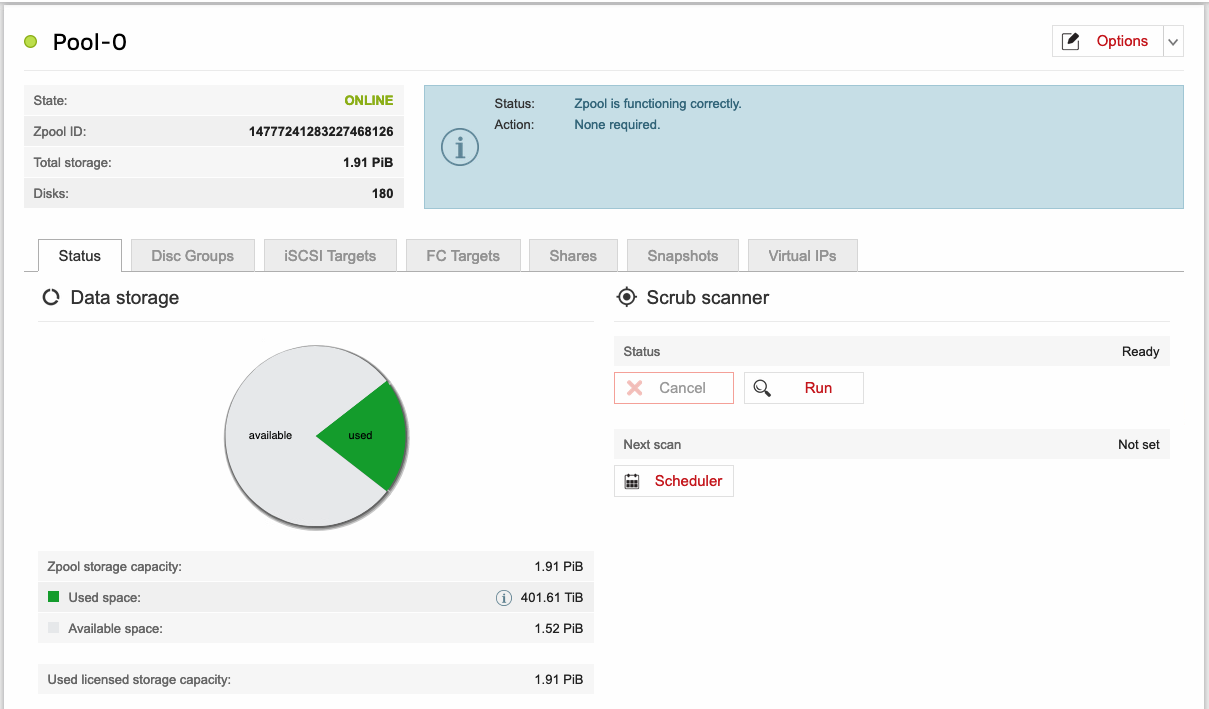

Pools normally show green and healthy

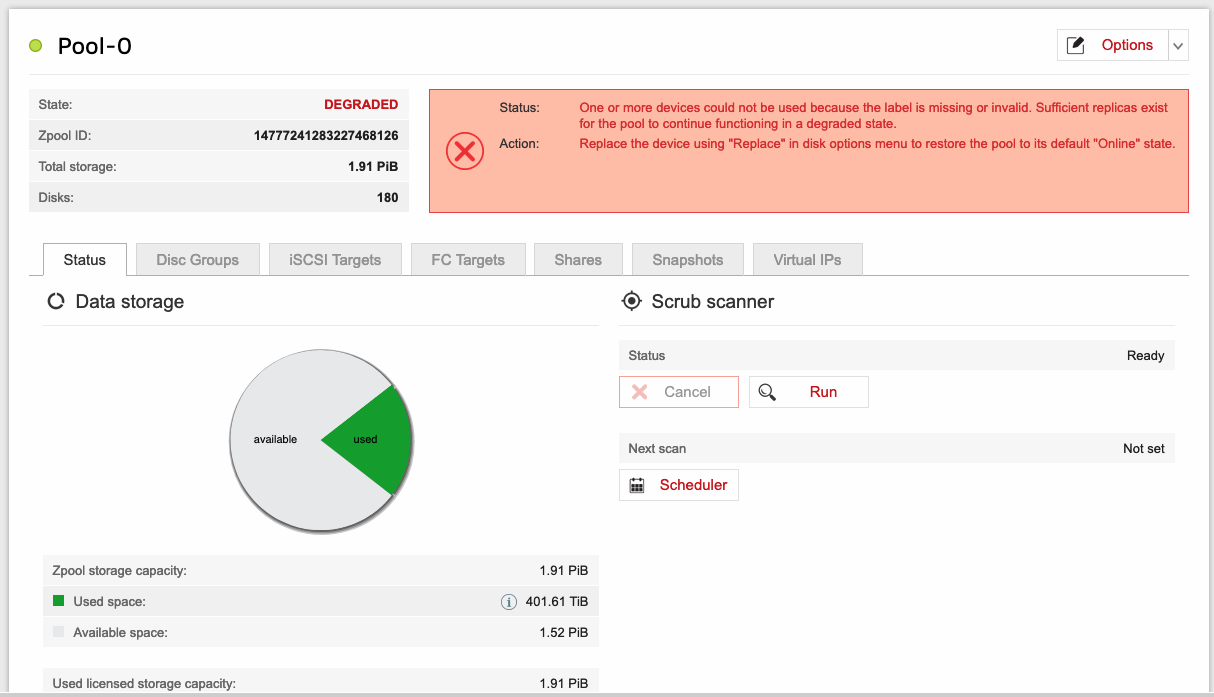

After disk fails, Pool shows “DEGRADED” in red

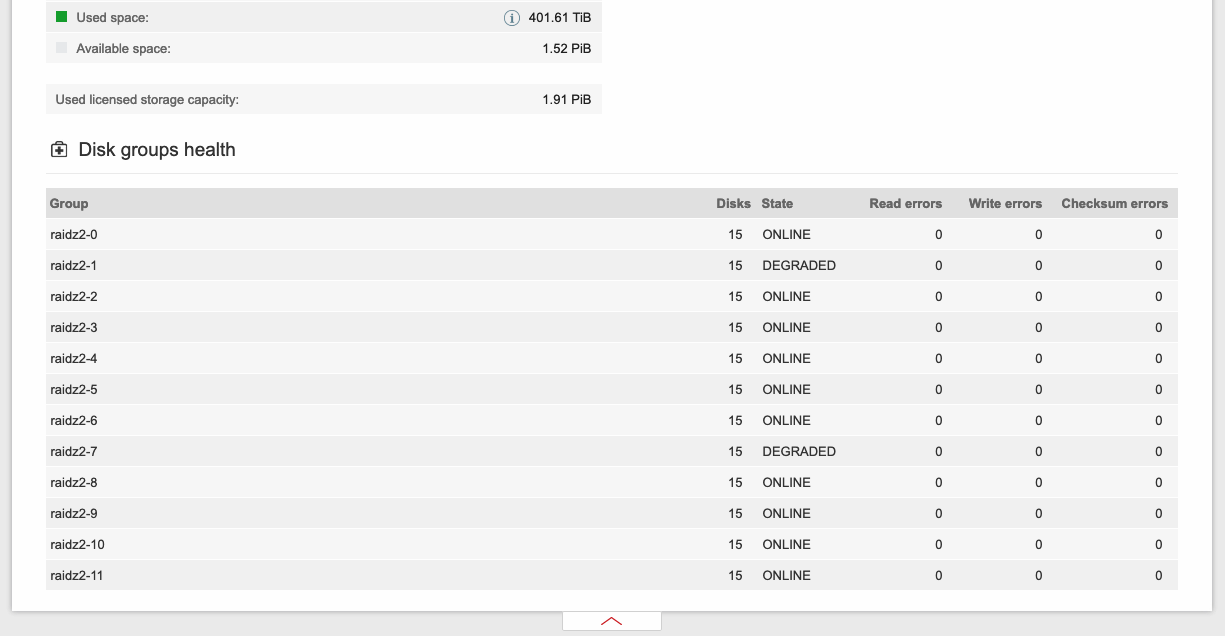

Scroll down to see which disk group(s) have a failed drive

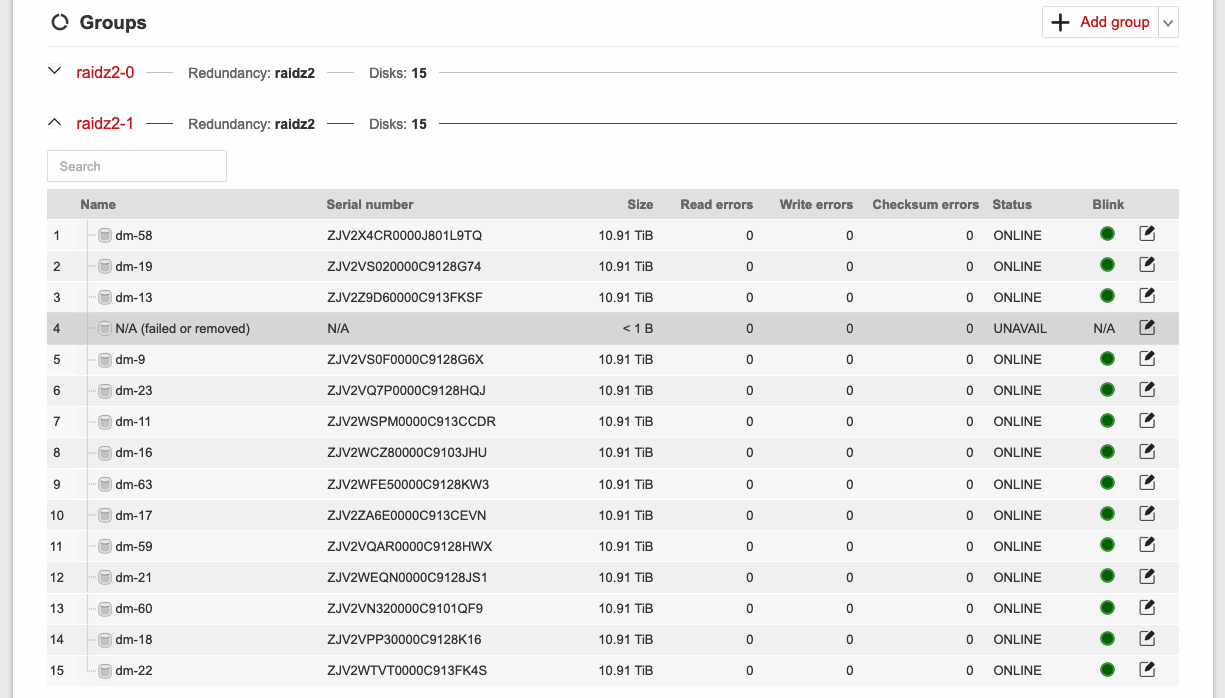

Click disk group TAB under Pool and open the DEGRADED Disk group, blink drive so you can physically locate it to replace it.  After replacing it shows (failed or removed)

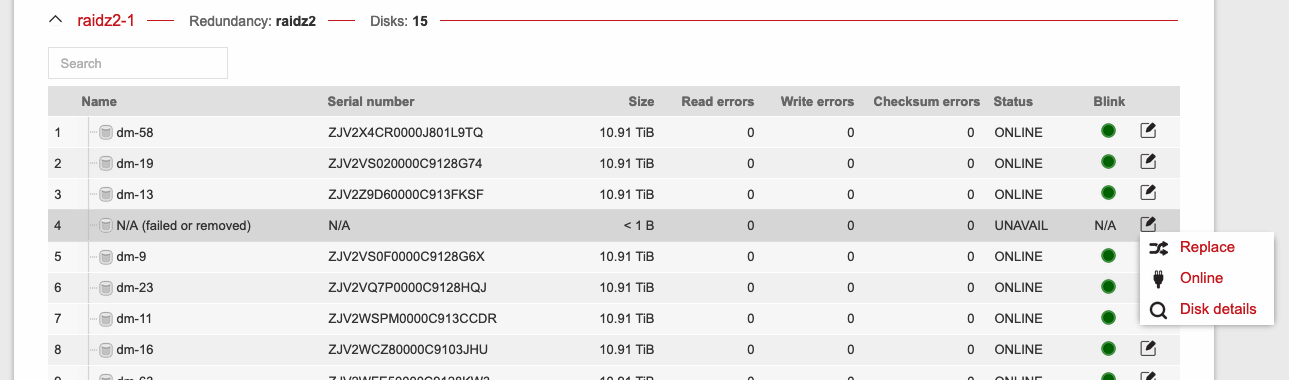

If rebuild of new disk doesn’t happen automatically you can click the “Pencil” to the right and Replace

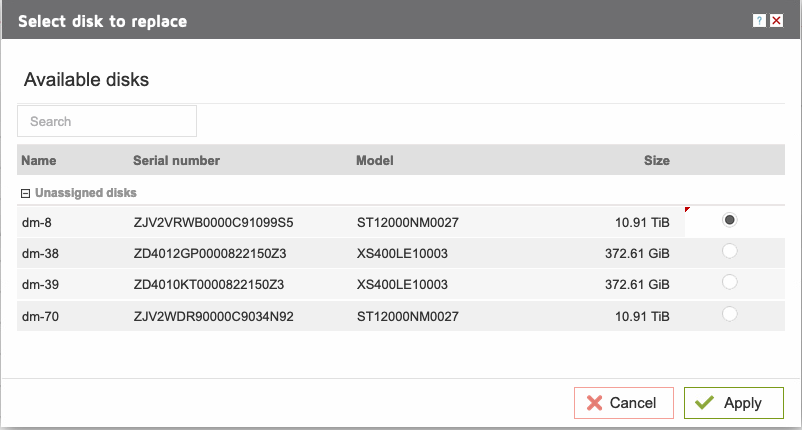

If you have multiple drive sizes ensure you are replacing with the same size disk and hit APPLY

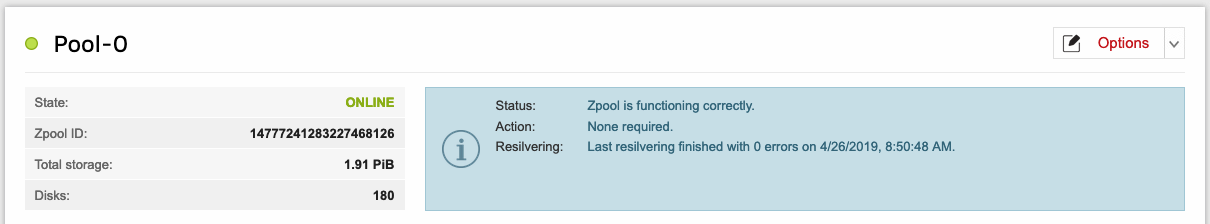

Resilver (ZFS rebuild) will re-establish parity as defined by the disk group.  Ensure that the Pool is back to healthy after the resilvering

The event log will show these typical messages for disk failures
