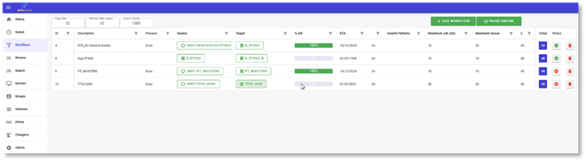

19.10 Workflows Management Screen

The Workflows Management section allows you to create and manage workflows for copying and migrating content.

• Workflows allow the user to copy/migrate content from one source location to a Target location.
  • Page Size:
    • Number of workflows displayed on the screen at one time
  • Refresh Rate (secs):
    • How long before the browser refreshes the status of the workflows.
  • Search Depth:
    • 1000
    • This is how many results are returned from the search
  • ID:
    • The Workflow ID
  • Description:
    • The Workflow name
  • Process:
    • What is currently happening
      • Scan
      • Watch
      • Mirror
      • Copy
      • Migrate
  • Source:
    • Source Location
  • Target:
    • Target Location
  • % left:
    • Percentage of Job left to complete
  • ETA:
    • Date expected to complete the workflow.
    • SF Migrate is able to calculate the ETA based on
      • Calculating how much data is going into the Workflow
      • How fast the Drives are
  • Search Patterns: 24
  • Maximum Job (Gb): 10
  • (Button) Details:
    • Shows status information on the workflow that has already occurred.
    • There is a button to see the log for each part of the job.
    • There is a button to restart a job if it fails.
  • (Button) Disable Workflow:
  • (Button) Delete Workflow:

• ADD WORKFLOW

• Description:
  • Workflow Name
• Task Type:
  • Scan
  • Watch
  • Mirror
  • Copy
  • Migrate
• Source Type:
  • Source of the content in the workflow.
    • Disk
    • Tape
    • S3 (Amazon S3 API compatible)
    • Alto (DiskArchive)
• Target Type:
  • Source of the content in the workflow.
    • Disk
    • Tape
    • S3 (Amazon S3 API compatible)
    • Alto (DiskArchive)
• Target Group:
  • Available group if applicable
• Frequency:
• Media Filter
• File Size
• File Age
• Max JobSize
• Max Queue
• Priority
