Storj/Object Mount and CaraOne can be integrated together fairly easily. You will need an object storage, and valid user credentials that can read and write to that object storage. For installing Storj/Object Mount and getting the object storage mounted appropriately follow the help guides on their support site or contact Storj/Object Mount directly. 2nd link below is detailed information for set-up.
https://supportdcs.storj.io/hc/en-us
https://cuno-cunofs.readthedocs-hosted.com/en/stable/getting-started-download-and-installation.html
CaraOne Server setup
To connect the CaraOne server to Storj/Object Mount, you first need to download Storj/Object Mount via wget, and install it via apt:
wget https://github.com/cunoFS/cunoFS/releases/latest/download/cuno-glibc-installer.run sudo sh cuno-glibc-installer.run
You will be prompted to read and agree to the terms to continue the install.
License
You will be able to do a free evaluation for 14 days. Contact sales@cuno.io for a quote to get a permanent license. If you are using the free evaluation license, no need to run the activate command.
cuno creds activate
Test
You will be able to test to make sure the software is working correctly.
cuno version
To test to make sure the Object Mount software is working correctly, you can type in the following and should see similar results.
$ cuno run sh -c "ls s3://stpubdata/" galex hst jwst k2 kepler panstarrs tess $ cuno run sh -c "ls s3://stpubdata/tess/public/*" 's3://stpubdata/tess/public/ffi': s0001 s0005 s0009 s0013 s0017 s0021 s0025 s0029 ... [truncated] 's3://stpubdata/tess/public/mast': tess-s0001-1-1-cube.fits tess-s0012-1-4-cube.fits tess-s0023-2-3-cube.fits ... [truncated] ... [truncated]
Object Storage Devices
Object Mount supports AWS S3, Microsoft Azure, Google Cloud Storage and S3 compatible storages. Refer to the installation link above for details on each mount type.
This example will be for connecting a AWS S3 storage.
1. Create a Credentials file on your CaraOne server.
Example: touch /home/user/credentials.txt
sudo touch /home/user/credentials.txt
The file needs to have in this case aws_access_key_id and aws_secret_access_key. (refer the above links for other S3 devices)
sudo vi /home/user/credentials.txt
The file should look like this:
aws_access_key_id = xxxxxxxxxxxxxxxxxx aws_secret_access_key = xxxxxxxxxxxxxxxxxx
After saving the file, change its permissions to 0600.
sudo chmod 0600 /home/user/credentials.txt
Credentials for Object Mount.
Copy your credentials to the default location:
sudo mkdir -p ~/.aws sudo cp /home/user/credentials.txt ~/.aws/credentials
This is assuming your saved credentials are in the file "credentials.txt"
cuno creds import /home/user/credentials.txt
Test your credentials.
Try listing your paired buckets:
ls s3://
Try listing objects:
ls s3://bucket_name/
Try writing to the bucket:
echo "hello world" > s3://bucket_name/helloworld.txt
Try reading the file:
cat s3://bucket_name/helloworld.txt
Try deleting the file:
rm s3://bucket_name/helloworld.txt
Usage
Access the path via path or URI formats.
$ cuno (cuno)$ ls s3://<bucket>/<path> (cuno)$ ls /cuno/s3/<bucket>/<path>
Mounting storage
Object Mount allow you to mount an object storage path in a directory within the system.
mkdir /mnt/CaraOne cuno mount /mnt/CaraOne cuno mount --technician s3://bucket_name /mnt/CaraOne
** Note technician is our username.
Persistent mount
You will want to set-up a persistent mount so the mount will happen after reboots.
Create a wrapper file, for example /opt/cuno/libexec/cunomnt-posix-restart
sudo vi /opt/cuno/libexec/cunomnt-posix-restart#!/bin/bash
/opt/cuno/libexec/cuno-mount $@ --posix --auto-restart(Above is if enabling posix mode and it hasn’t been enabled on the bucket already using cuno creds setposix s3://bucketname true)
Make the file executable:
sudo chmod a+x /opt/cuno/libexec/cunomnt-posix-restart
The fstab file should look like this:
/opt/cuno/libexec/cunomnt-posix-restart#--root=s3://bucket/path/ /my/local/mountpath fuse _netdev 0 0
Or look like this:
/opt/cuno/libexec/cunomnt-posix-restart#--root=s3://bucket/path/ /my/local/mountpath fuse _netdev,uid=1001,gid=1002,filemode=0664,dirmode=0775 0 0
Once this is set-up, then follow the standard CaraOne storage setup tp get CaraOne indexing the Object Storage location.
Client Setup
You will first Download the Object Mount client ( Windows or Mac ) and consult Object Mount support for any questions and download locations.
https://supportdcs.storj.io/hc/en-us
Launch the Object Mount client and provide the same filesystem and user authentication used on the server. This will create the mount point as a Drive letter on Windows, and a volume in /Volumes on a mac.

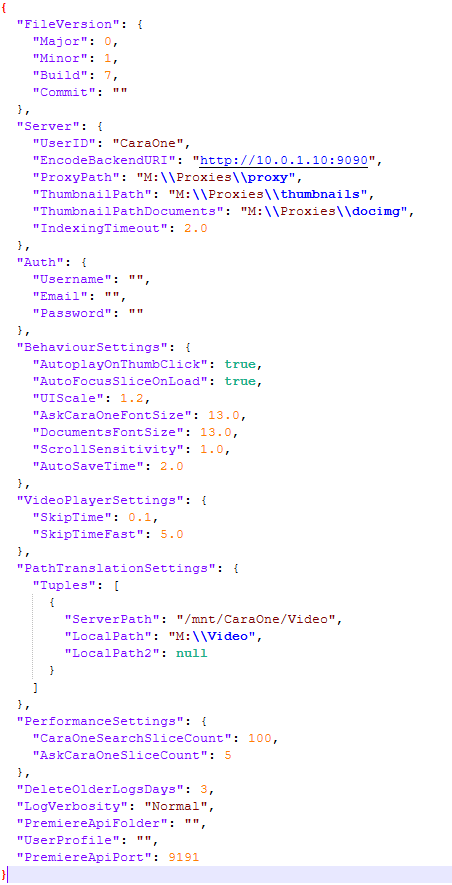

You will need to update your CaraOne client config with the correct server and local mountpoint.
