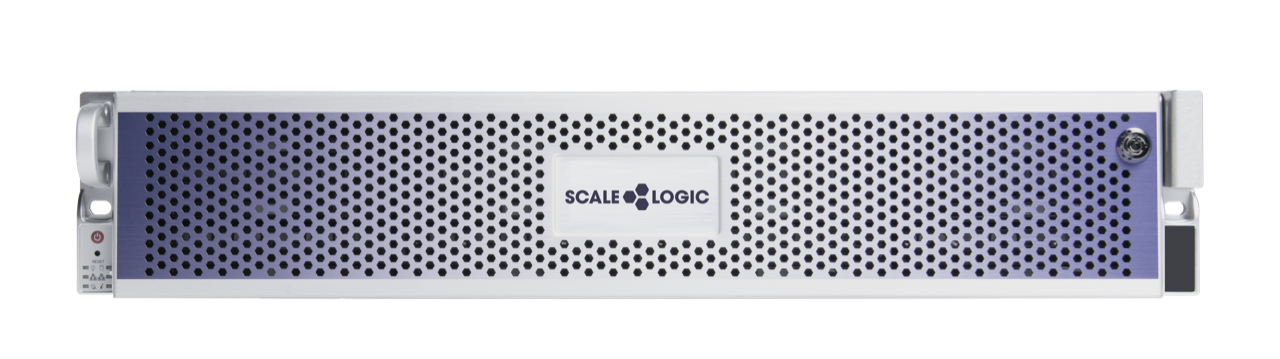

ZX3 24 Bay NVMe


Key Features


  • Clustered 2U ZX3 NAS and converged storage system featuring 2 hot-pluggable nodes in failover mode, optimized for very high-speed workflows utilizing NVMe for cache or all flash

  • 24 x 2.5" hot-swap PCIe v4 NVMe SSD drive bays accessible to both nodes, 2 x M.2 NVMe SSD Boot Drive per node with Scale Logic ZX OS

  • Expansion up to 9PB using a single global namespace or quota-enabled workspaces for NAS access, Virtual Volume (VVOL) for iSCSI target creation, VMware support, robust checksum file system, and built-in replication features

  • Range of SKUs covering NVMe capacity up to 184.32TB used as either all flash, cache, or both, and support for online capacity expansion via ZX SAS JBODs

  • SMB2 and 3, NFSv3, optional FTP/FXP, quotas, Active Directory, LDAP, unlimited snapshots, dataset clones, email notification, hardware load analytics, optional container support for additional supported applications

  • 1600W High-efficiency Redundant PSUs


Technical Feature
Specifications
Dimensions and Weight
  • Height:  3.43 in. (87 mm)
  • Width:  17.2 in. (438 mm)
  • Depth: 27.44 in. (697 mm)
  • Gross Weight: : 58.7 lbs (26.7 kg) max
Expansion Options per Node
  • 2x PCIe v4 (1 x HHHL x16) expansion slot(s) for add on NICs, options include 25Git, 100Gbit, or 200Gbit
  • Connect up to 8 ZX JBOD Expansions ranging from 12,24,36,44, and 60 bays
  • Up to 24 U.2/U.3 PCIe V4 NVMe flash bays
Included Accessories
  • 2x US Power Cords 16AWG, Pb Free
  • Rail set, auto-latch square hole, 26.9" to 36.4"
Product SKUs
  • ZX3/24-NVMe - Dual ZX node with no NVMe installed
  • ZX3/24-NVMe/6-23TB - Dual ZX with 23TB NVMe installed
  • ZX3/24-NVMe/X-YYYTB Where "X" is the number of NVMe, installed in increments of 6, and "YYY" is RAW Capacity up to 184TB
Rear Connections and Ports per Node
  • 4 x 10GBASE-T RJ45 NIC ports, IPMI/BMC Redirect, 1 x Console VGA, 2 x USB
  • 4 x 12Gbit SAS SFF-8644 for capacity JBOD extension
Processor and RAM per Node
  • Upgraded 1 x EPYC processor, 256GB RAM
Front Panel
Button:
  • Power On/Off button
  • System Reset button
LED:
  • Power status LED
  • NVMe activity LED
  • Network Activity LEDs Unit
  • Identification (UID) LED Fan
  • Power Fail LED
Power Supply1600W Redundant Power Supplies with PMBus

AC Power:
  • Nominal Input Range: 200-240V AC (120V possible but no power supply failover)
  • Input Frequency: 50-60Hz
  • Power Source: dual redundant
  • Input current: 4 A max @ 180V AC per PSU
  • Inrush current: 40 A peak per PSU
  • Maximum system output power rating: 2200W


Systems Cooling
Fans:
  • 6x Heavy duty fans
Systems Monitoring
  • HTTPS, IPMI, and Redfish
  • Optional Scale Logic Health Monitoring (phone home)
Operating Environment
RoHS:
  • RoHS Compliant
Environmental:
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 20% to 0% (non-condensing)
  • Non-operating Relative Humidity: 10% to 90% (non-condensing)
