At many NX2 and ZX sites, they use Evertz DreamCatcher for sports replays and the NX2 share is mounted on it. It allows a fluid edit to play out scenario.

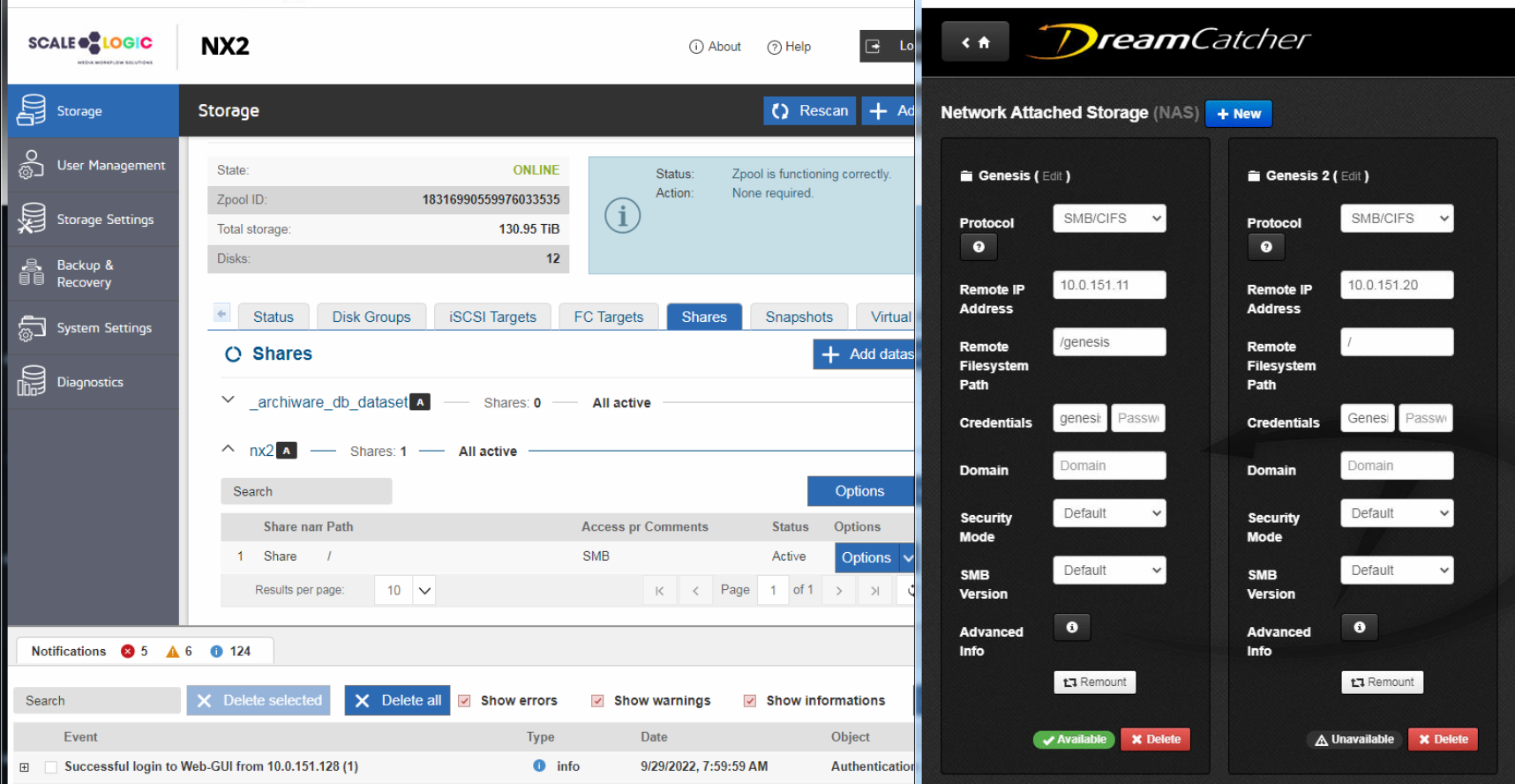

In this example, the share name is called /Share with GUEST access and that's what gets mounted. Check the second picture for the proper mount inputs. Log into DreamCatcher and find the Storage tab on the home screen. We have two mounts there. One for a Gen1 GenesisNX and another for an NX2. The Mount indicator should be green and say "Available" It takes about 10 seconds for them to mount when the inputs are correct (see parameters below)
Share on NX2

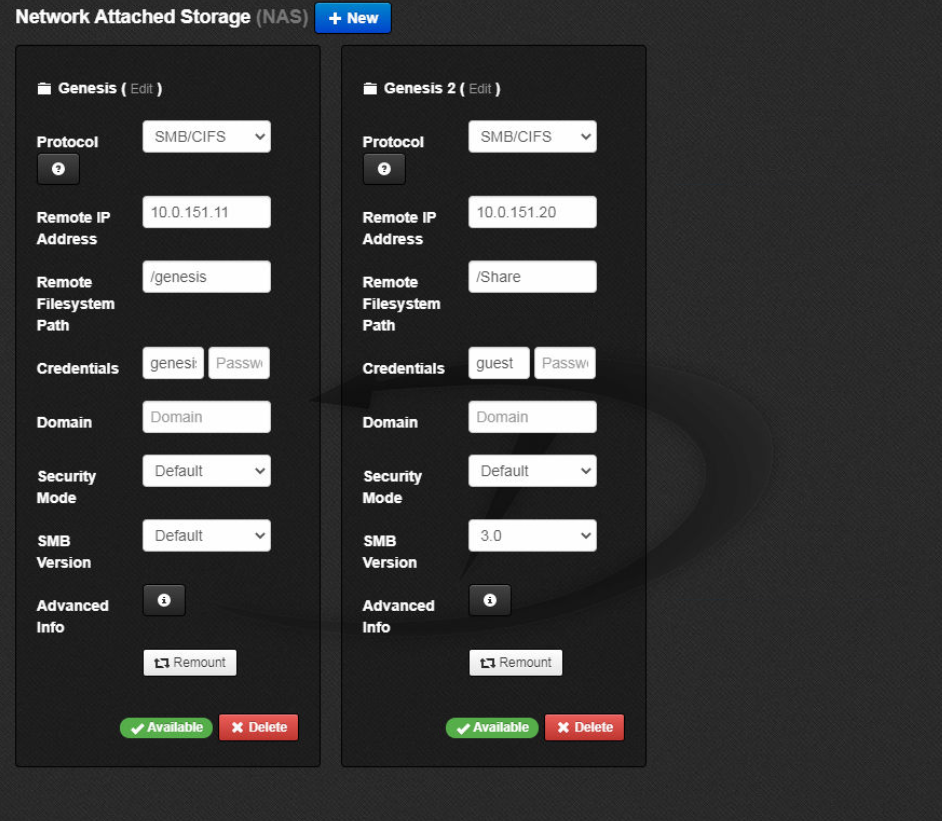

For Dreamcatcher add these parameters below (see image below)
GenesisNX (on left)
Protocol:SMB/CIFS
Remote IP Address:10.0.151.11
Remote filesystem path: /genesis
Credentials: genesis: (unknown password)
Domain: (no domain
Security Mode: Default
NX2 (on right)
Protocol: SMB/CIFS
Remote IP Address: 10.0.151.20
Remote Filesystem Path: /Share
Credentials: guest:guest
Domain: (no input)
Security mode: Default
SMB Protocol: 3.0
