1U ZX Head Node Front - Bezel, power button, and indicator lights

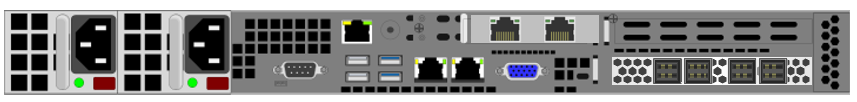

1U ZX Head Node Rear - Dual Power Supplies, Dedicated IPMI, 2 x 10Gbit RJ45, 2 x 1Gbit RJ45, and 4 x SAS Expansion connectors



Server system and controller features
ChassisRoHS-compliant 1U enclosure with rack mount kit. Dual FRU power supplies
Base System CPU/RAM/Drives4 core 3.2 GHz Intel Scalable CPU, 192GB RAM, 2 x 240GB SSD/HDD Mirrored
External I/O Ports1x RJ45 Dedicated IPMILAN Port, 2x 10GbE RJ45, 2 x 1Gbit RJ45, 10/25/40/50 and 100 GbE NIC(s) optional, 4 x SAS JBOD connectors
Operational Features
RAID protectionSingle, Mirror, Z-1 (RAID5), Default Z-2 (RAID6), Z-3(RAID7), drive integrity scan, physical drive error recovery. drive rebuild and monitoring, SMART, error recovery mechanisms, spare drive support
Key FeaturesUnlimited snapshots for file protection: replication: global namespace: storage utilization reports: indexing services for optimized search, ADS User and Group ID Synchronization, Internal LDAP, Pooled based storage management, online storage pool expansion.
Network ProtocolsSMB3, NFS3, FTP, FXP, iSCSI
System Management
Supported OSWindows, macOS, Linux
Management ToolsEmbedded web management and console support — no host agent is needed using standard TCP IP; simple process to create users and groups, ADS synchronization; NAS tuning tools for optimal performance for various applications and status monitoring.
Management InterfacesEmbedded web server and management support — no host agent is needed
Event NotificationEmail, audible (buzzer), and visible (LEDs) alerts, SNMP
Server mechanical Specifications
Voltage90-264 VAC Auto-Ranging 50-60 Hz, 8.5 – 6 Amp
Power Supply700W Redundant, high-efficiency power supply with PMBus and I2C
Operational Wattage225W
Operational Temperature5°- 35°C (non-operational -40° +70°C)
Relative HumidityMaximum 90%
Dimensions17.2 x 26.6 x 1.7 inch / 437.0 x 676.0 x 43.0 mm - Gross Weight: 46.0 lbs / 20.9 kg [approx.]
JBOD
Options12/24/36/60 single and dual expander capacities - Specifications available upon request
